More space, wind resistant

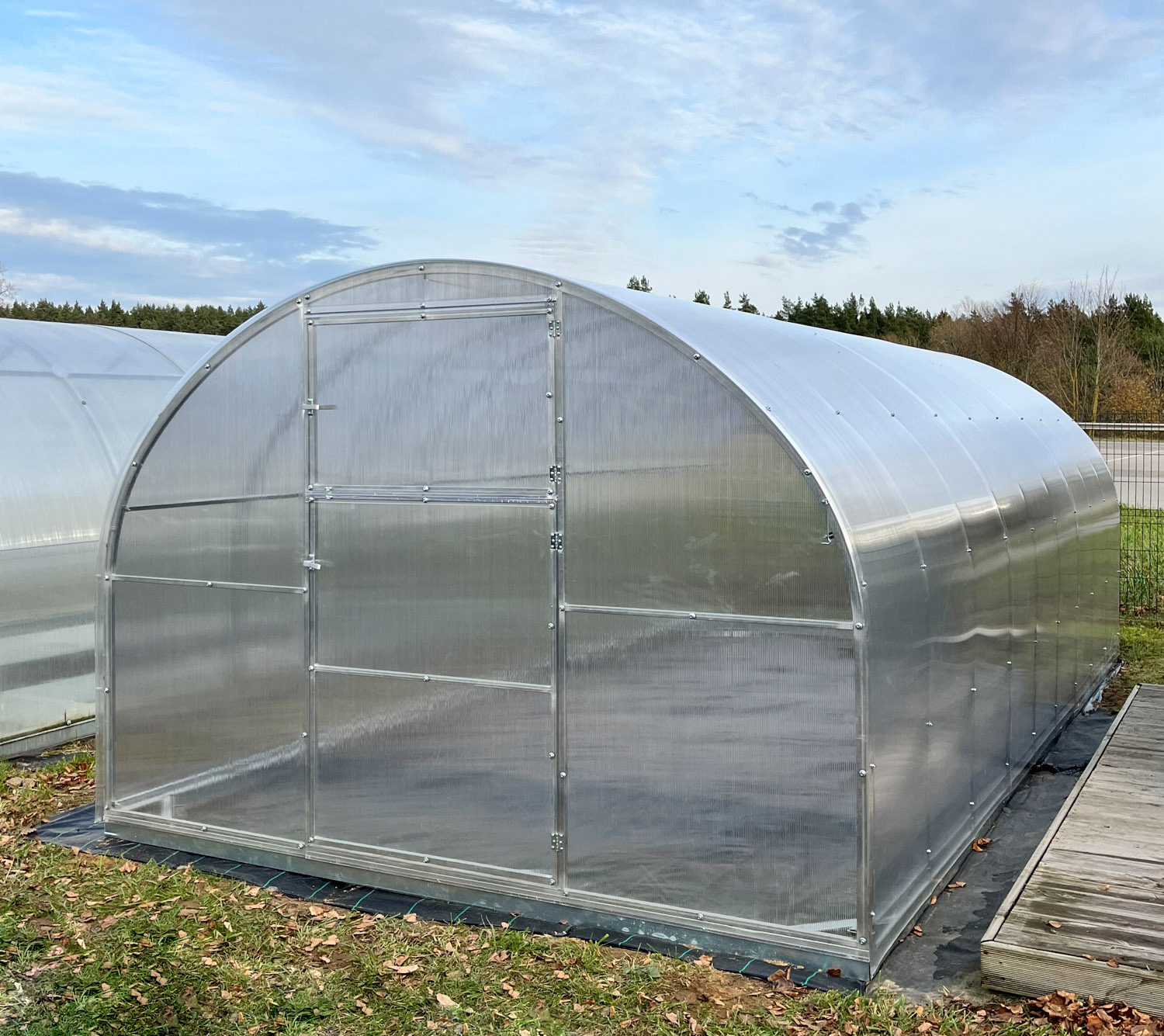

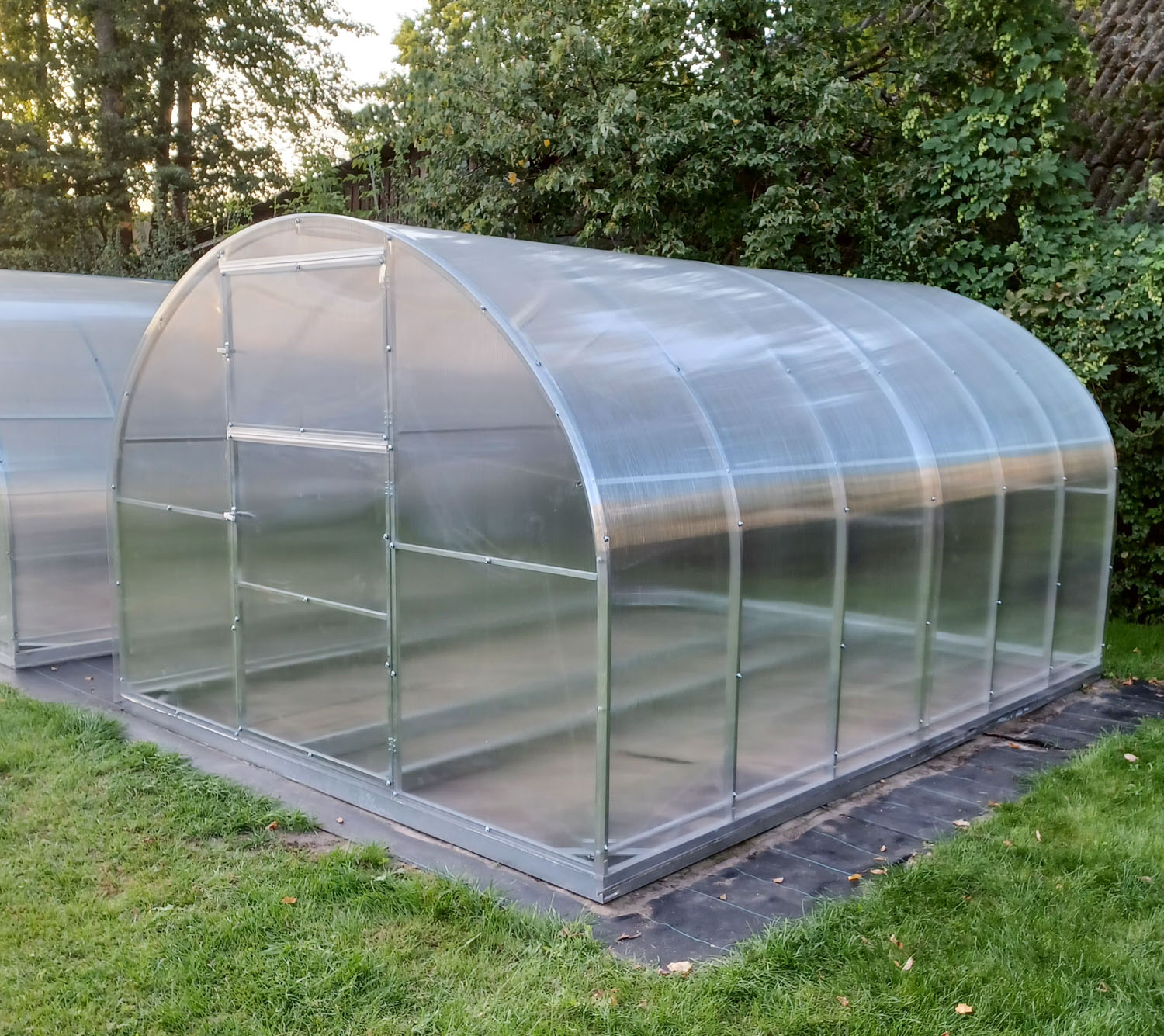

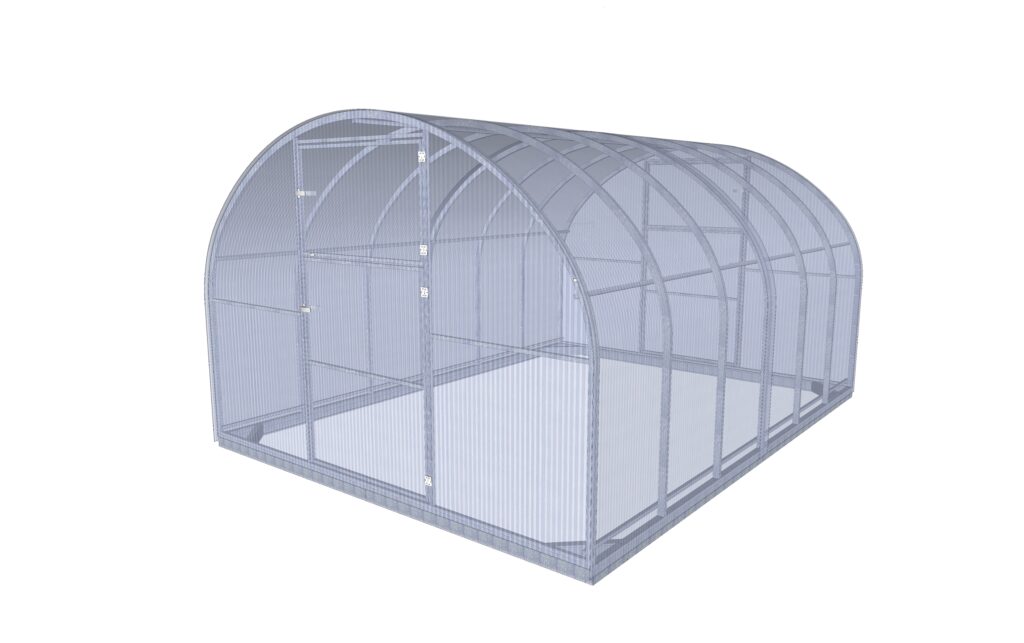

We have created SH Magnum greenhouse to be strong enough for rough Nordic winters with loads of snow and big winds.

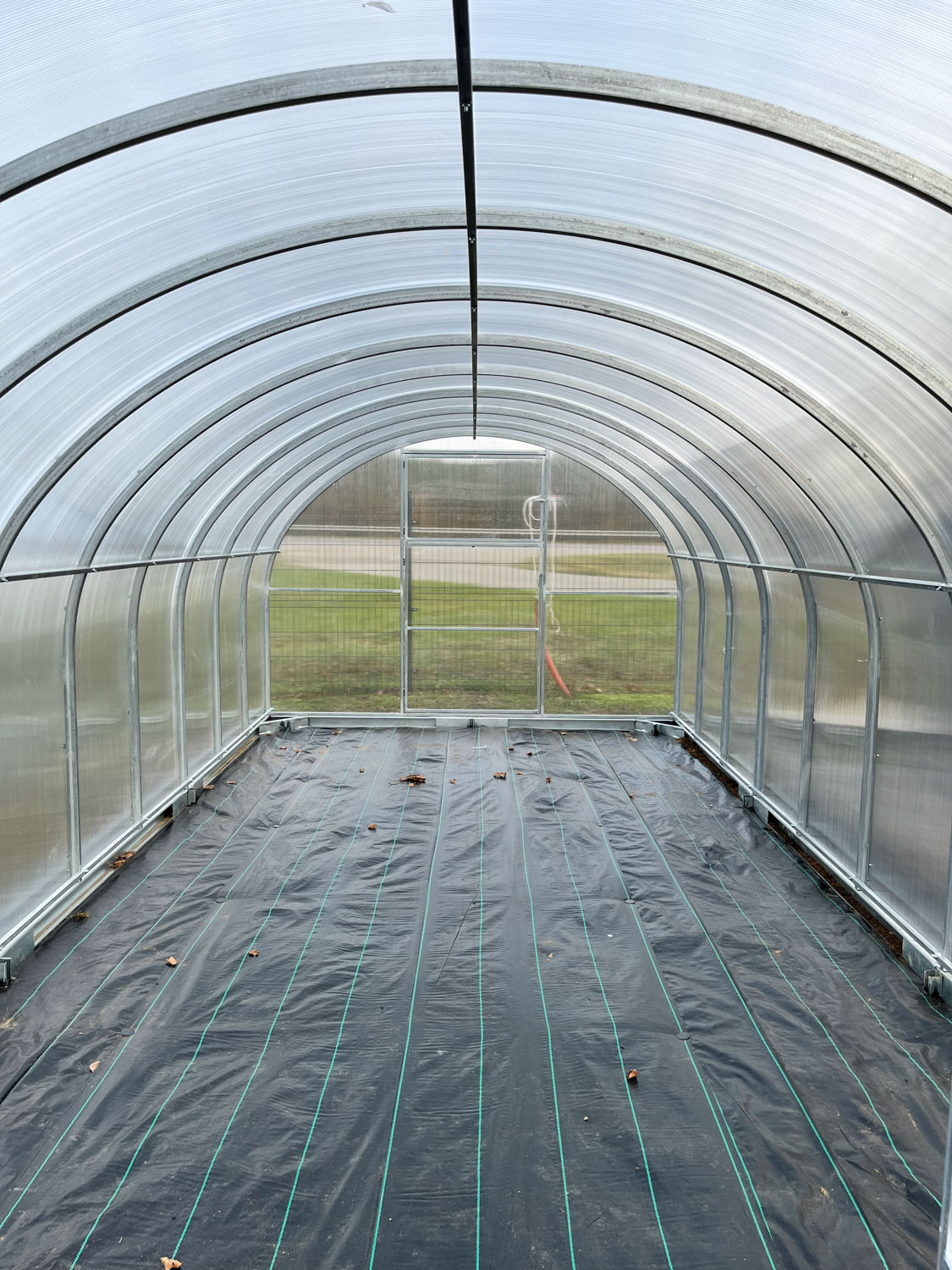

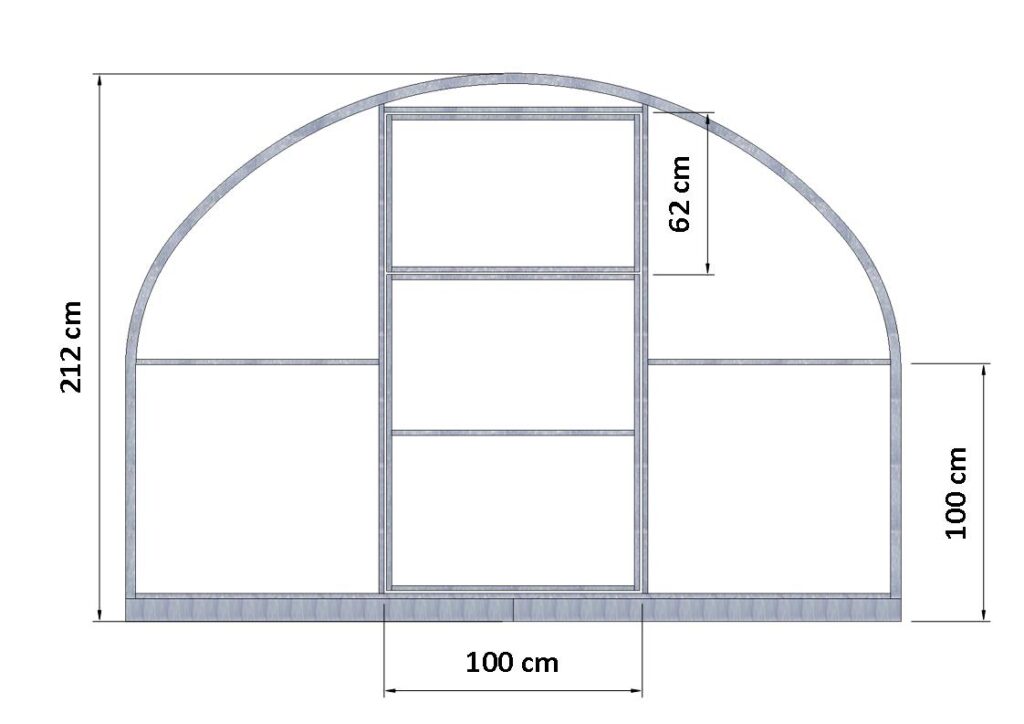

One of the main factors we wanted to achieve was to get more space on the sides of the greenhouse. As the result the arcs starts to bend at 1m above the foundation giving us more space at the sides so vegetables could grow higher and the efficiency of land used grows.
What we are also proud of is that plastic waste in the assembly process is kept to minimum. Polycarbonate sheets needed for covering the top of this greenhouse is exactly 6 m length.
Benefits compared to others
SH Magnum

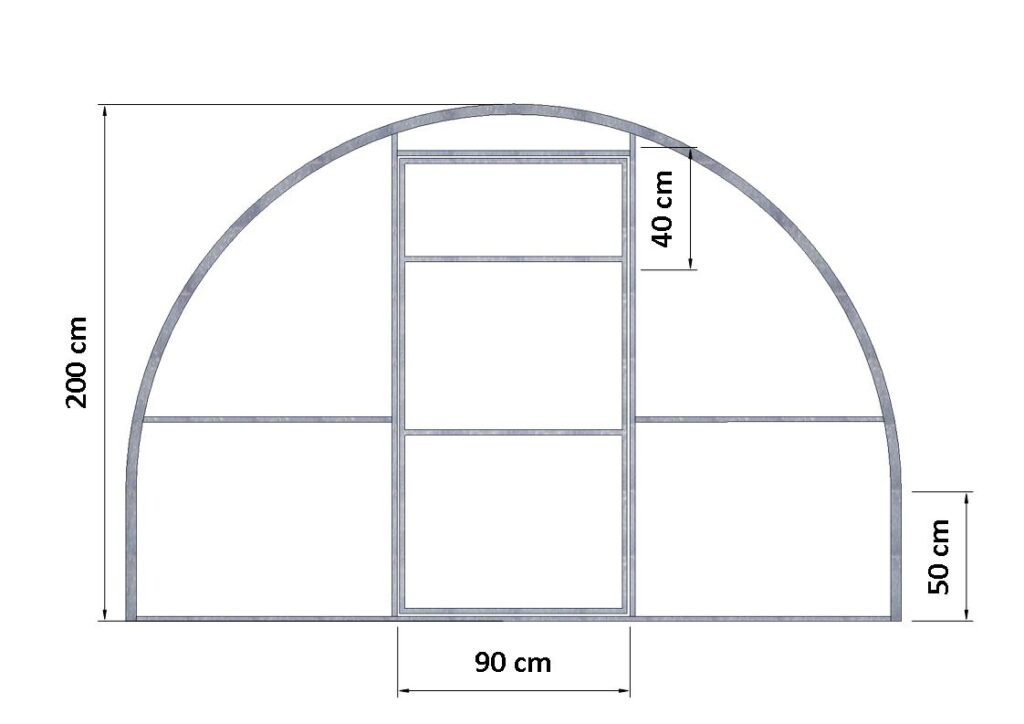

Other manufacturers
Detailed specifications
| Basic data | |
|---|---|

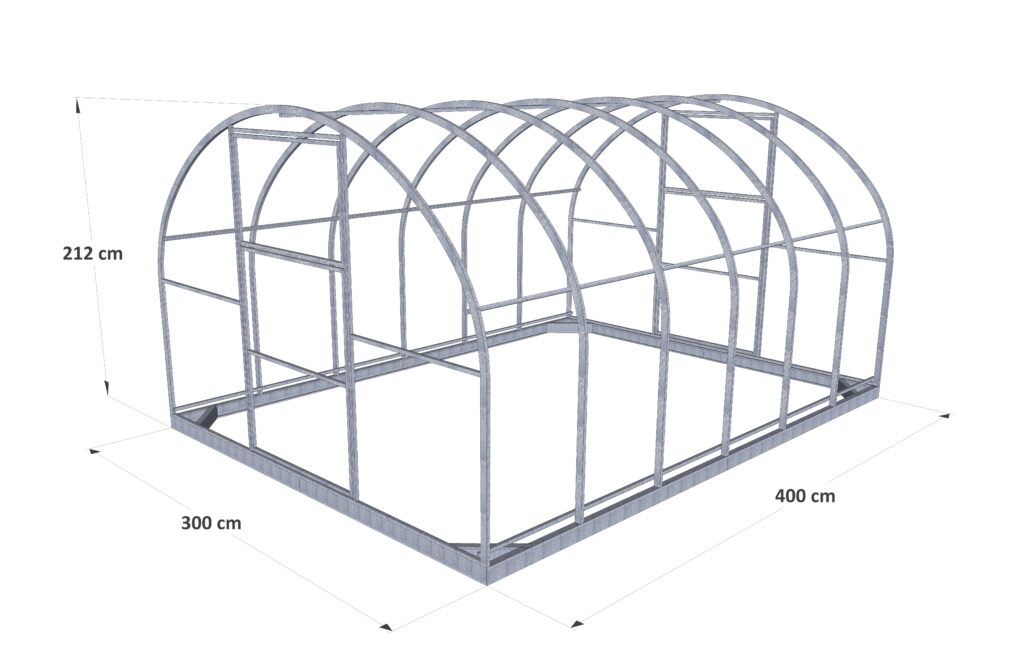

| Assembled greenhouse dimensions | Width - 3 m, height - 2.13 m, length - 4, 6, 8, ..., m |
| Arc distance | 64 cm |
| Steel tube dimensions | 20x40 and 20x20 mm |
| Metal thickness | 1 - 1.2 mm |
| Metal type | Galvanized steel tube, 275 g/m2 |
| Greenhouse base profile | 39x89 mm, C type |

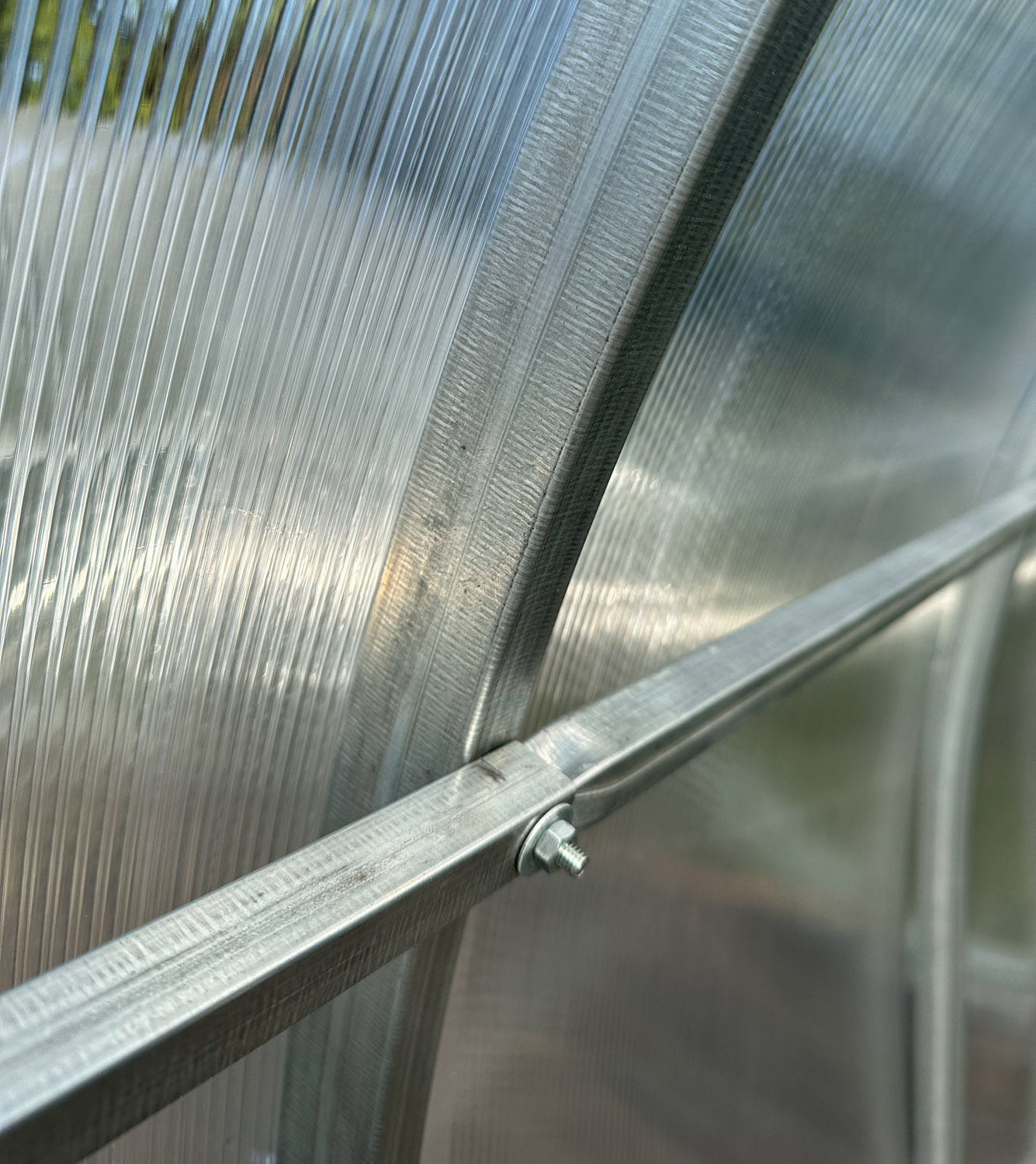

| Screw type for frame assembly | M6 |
| Screw type for polycarbonate mount | GT3 with 20 mm EPDM sealing head |

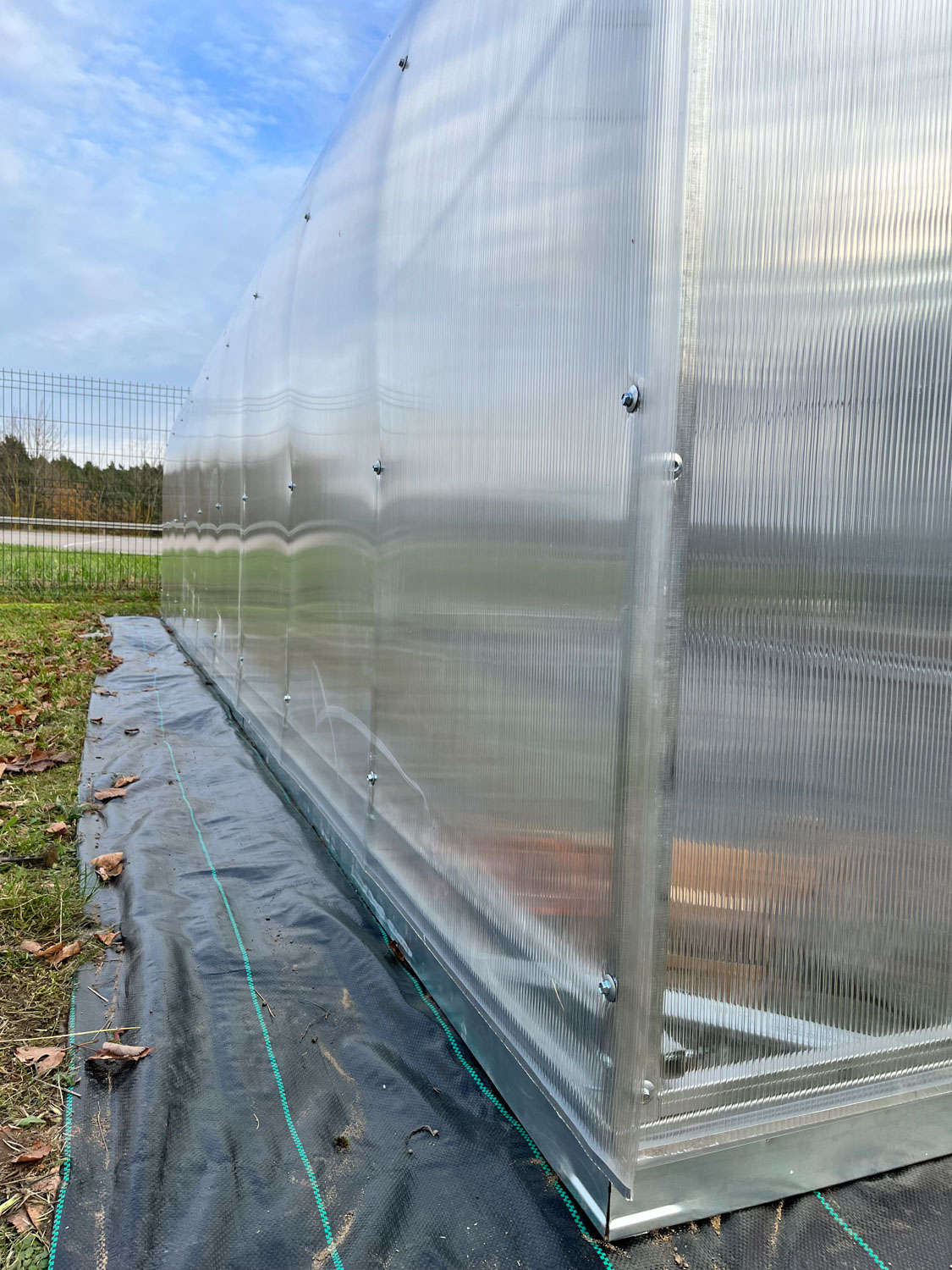

| Polycarbonate mount type | Sheets overlap each other by ~10 cm evevery 2 m |

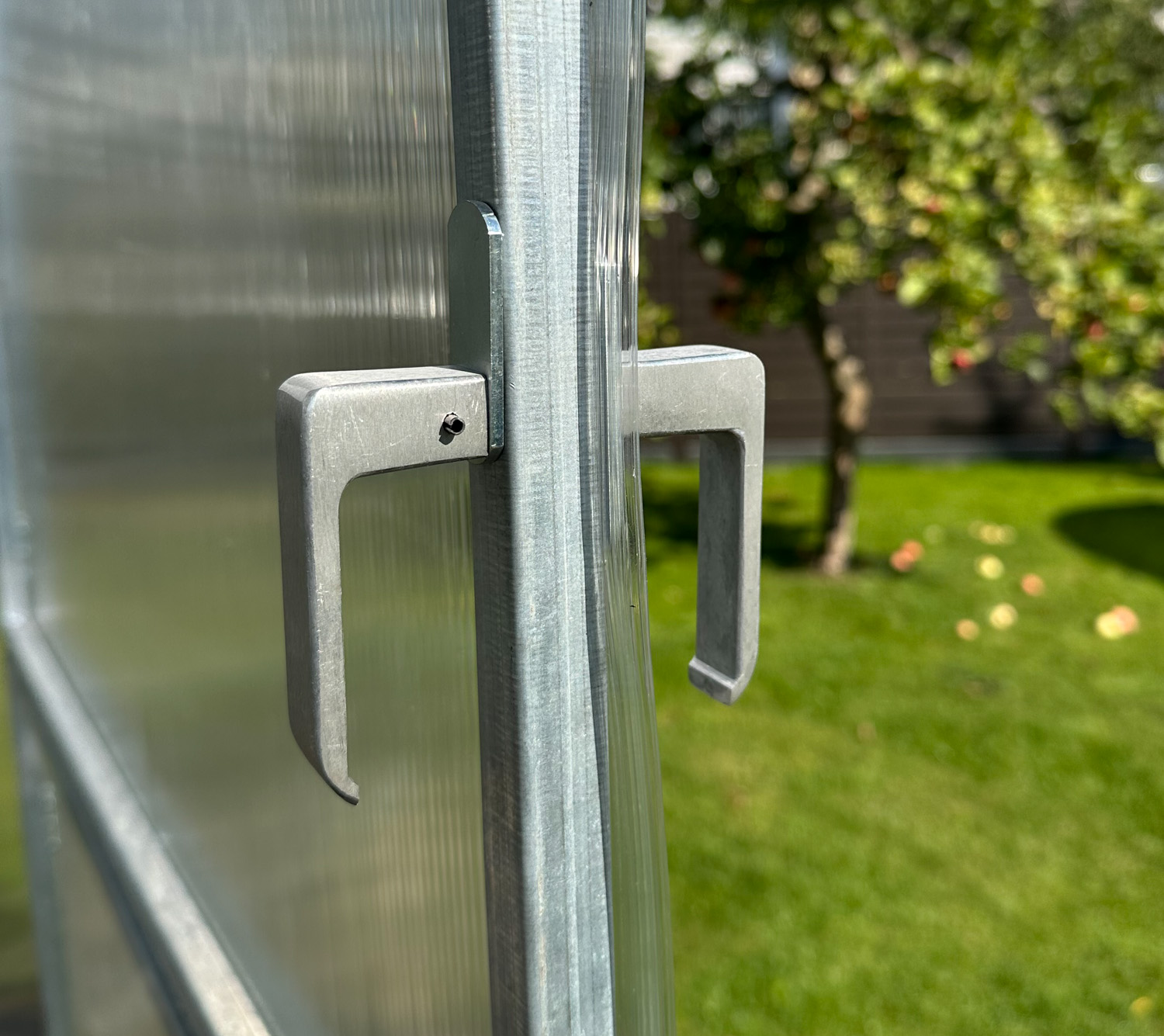

| Door handles, hooks, hinges | Included - made of steel |
| Extention | Available - every 2 m |

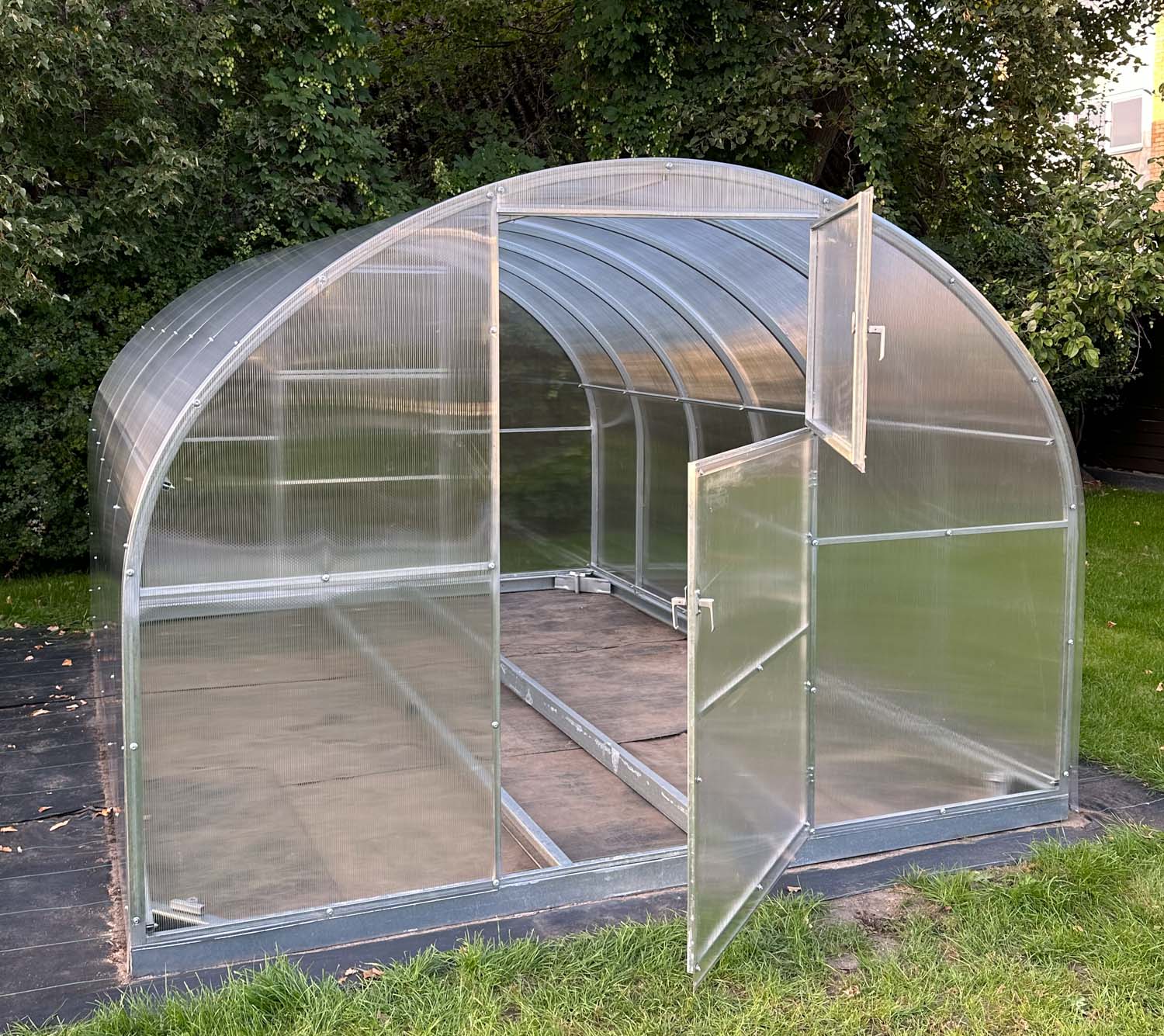

| Doors | 2 pcs - separate top part for ventilation |
| Roof windows | Available |
| Frame | Front/back and doors - pre assembled (welded), arcs - rolled from a solid tube |
| Assembly instructions | Included - clear step by step guide |
| Package dimensions - base (3x4 m) | ||
|---|---|---|
| Package #1 | Main frame (front/back, arcs, doors) | 300x210x8 cm, x kg |
| Package #2 | Frame connectors | 210x10x4 cm, x kg |
| Package #3 | Greenhouse foundation | 210x40x9 cm, x kg |
| Package #4 | Screws, handles, hinges etc. | 20x20x20 cm, x kg |
| Package dimensions - extension (+2 m) | ||
|---|---|---|
| Package #1 | Arcs | 300x220x8 cm, x kg |
| Package #2 | Frame connectors | 210x10x4 cm, x kg |
| Package #3 | Greenhouse foundation | 210x40x9 cm, x kg |
| Package #4 | Screws | 10x10x10 cm, x kg |
